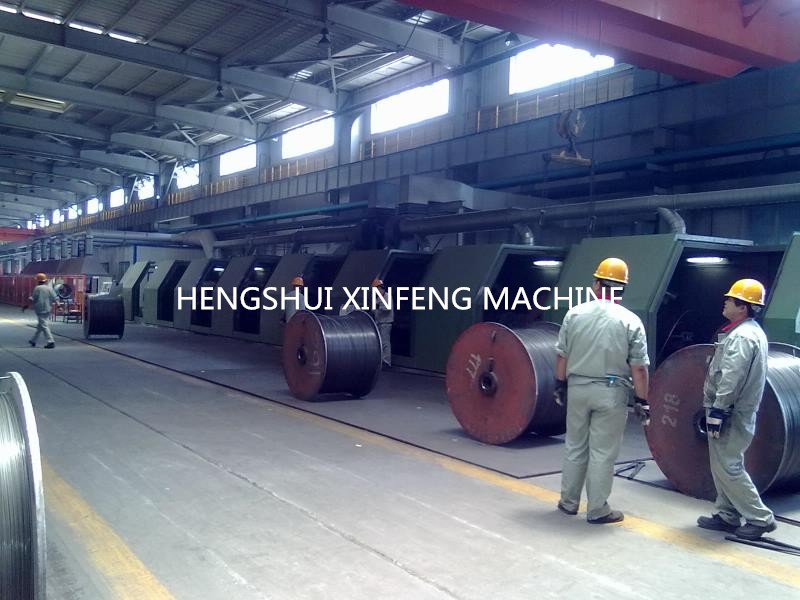

PC strand Wire machine production line;
1.1I-Wheel Outer Diameter 1250 mm
1.2I-wheel unit weight 3.5T
1.3Tension Wheel Diameter 2000 mm
1.4Receiver Volume Weight 25T
VolumeWeight 4T of 1.5 Layer Coiler
MainTechnical Parameters

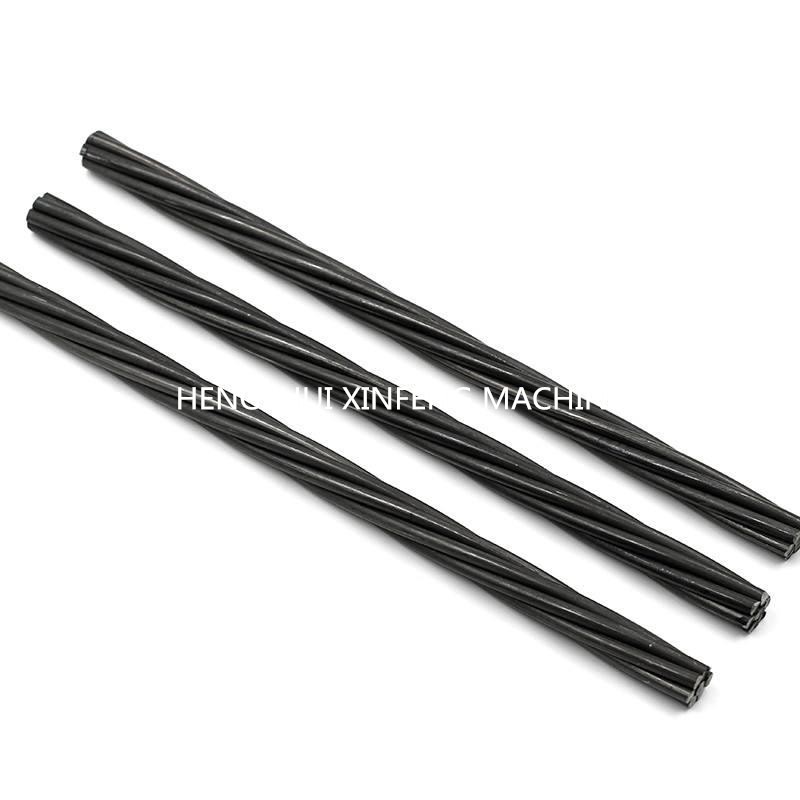

2.1Suitable for product prestressing strand1*7-9.5-17.8-1860-GB/T5224-2003
2.2Maximum Tension 16.5T
2.3Maximum alignment speed 120 m/min
2.4Jumper Maximum Rotation 560r/min
Maximumwinding speed of 2.5-layer coiler is300m/min
Maximumheating temperature of 2.6 mediumfrequency furnace is 400 C
IV.ELECTRIC CONTROL PARAMETERS OF ELECTRIC POWER
3.1Total installed capacity of motor 200 kw
3.2medium frequency furnace frequency 6 kHzpower 800 kw
3.3Speed Regulation AC Frequency Conversion
3.4Control Mode PLC Bus Control and Touch ScreenOperation
